상세 정보 |
|||
| 최대 온도: | 1700°C(3092°F) | 발열체: | 4 PC 링 모양의 MoSi2 |
|---|---|---|---|
| 온도 정확도: | ±1°C | 제어 시스템: | 7인치 HD 터치스크린(30개 프로그램) |
| 로딩 유형: | 전기 바닥 리프팅 플랫폼 | 가열 속도: | 0~40°C/분(조정 가능) |
| 전원공급장치: | 2kW (국내 회로 호환) | 챔버 치수: | 100mm * 100mm (높이) |
| 열전대 타입: | B타입(백금로듐) | 적용 범위: | 지르코니아 틀니 및 구조용 세라믹 |
| 강조하다: | Dental Lab Zirconia Porcelain Sintering Furnace,1700C Zirconia Porcelain Sintering Furnace,1C Accuracy Zirconia Porcelain Sintering Furnace |
||
제품 설명
Product Introduction

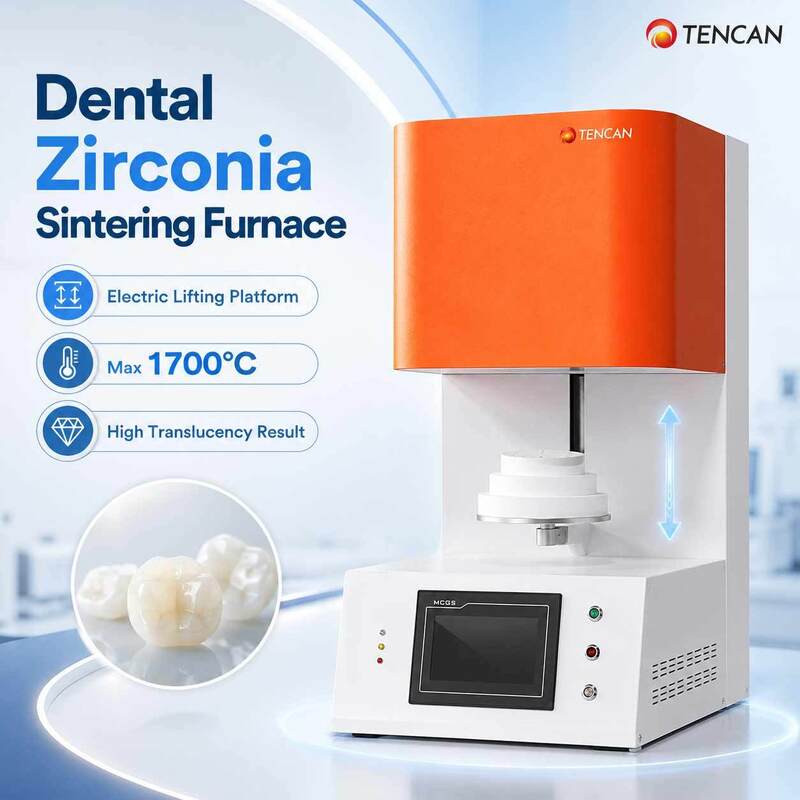

The TENCAN Lifting Dental Sintering Furnace features an electrically driven lifting platform that positions the sintering crucible accurately and quickly inside the furnace chamber. Four molybdenum disilicide heating elements are arranged in a circular configuration to provide uniform heat distribution and consistent sintering results.
Specially designed for zirconia dental restorations, the furnace helps produce crowns, bridges, and dentures with improved translucency, uniform coloration, and a more natural appearance. Its stable temperature control and even heating performance make it suitable for dental laboratories and zirconia restoration processing centers.
Product Features
- Specially designed for sintering zirconia dental restorations, structural ceramics, polymer ceramics, and other small-batch laboratory samples.
- With a rated power of only 2 kW, the furnace does not require a high-capacity industrial power supply and can operate using a standard household electrical circuit.

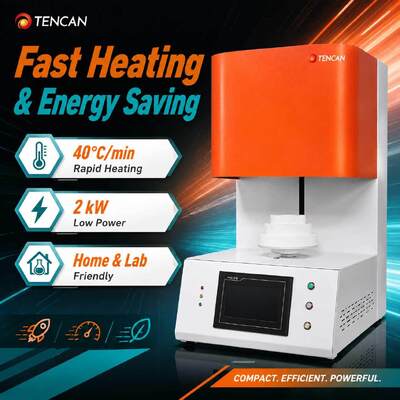

- Fast heating performance with an adjustable heating rate of 0–40°C/min.

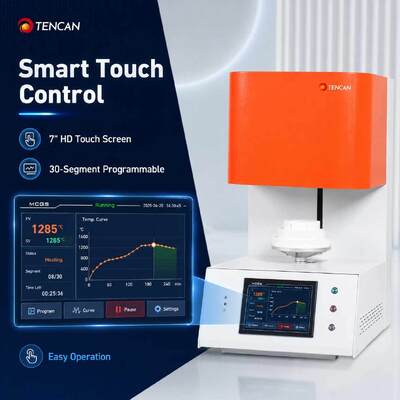

- Equipped with a 7-inch high-definition touchscreen for convenient operation and storage of up to 30 customizable heating programs.

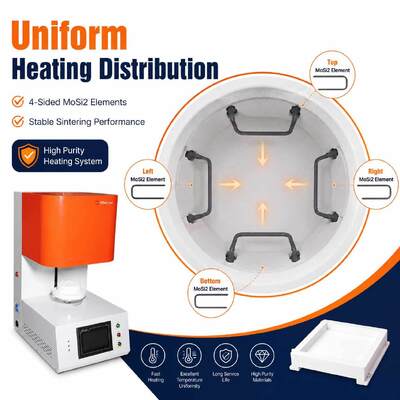

- Four molybdenum disilicide heating elements are arranged in a circular configuration to provide excellent temperature uniformity throughout the furnace chamber.
Technical Specifications
| Chamber Dimensions | Ø100 × 100 mm (Diameter × Height) |
|---|---|
| Maximum Temperature | 1700°C (maximum holding time: 2 hours) |
| Working Temperature | 1600°C |
| Temperature Control | Intelligent 50-segment programmable temperature controller |
| Thermocouple | Type B |
| Temperature Control Accuracy | ±1°C |
| Rated Power | 2 kW |
| Net Weight | 75 kg |
| Overall Dimensions | 420 × 570 × 825 mm |
Related Accessories
Standard Accessories
- 1 molybdenum disilicide (MoSi₂) heating element
- 1 alumina crucible
- 1 pack of zirconia beads
