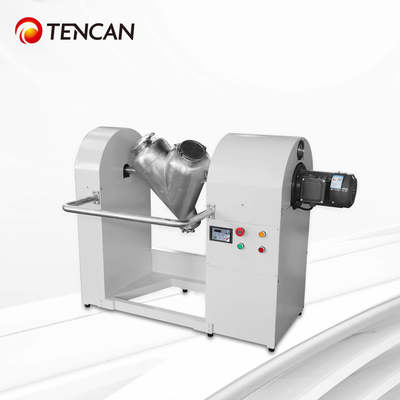

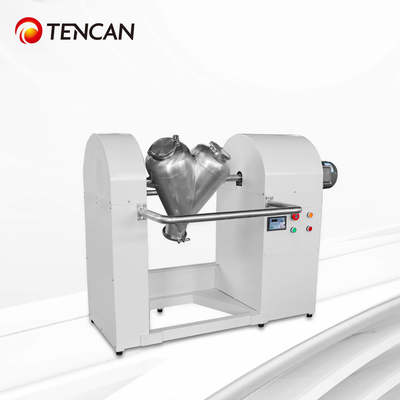

V-Type Powder Mixer: Multi-Industry Mixing Solution
The V-type powder mixer is engineered for efficient dry particle blending across diverse sectors including pharmaceuticals, food processing, chemicals, metallurgy, and electronics. Designed with manual loading and sealed discharge valves, it effectively contains dust during operation. Its distinctive barrel geometry enables thorough mixing without dead zones, while the stainless steel construction and polished surfaces prevent material contamination. Optional forced mixing mechanisms are available to meet specific processing requirements. The equipment demonstrates notable versatility in handling fine powders, agglomerates, and moderately moist materials.
Operating Mechanism

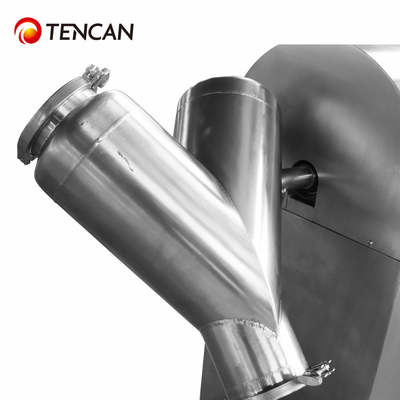

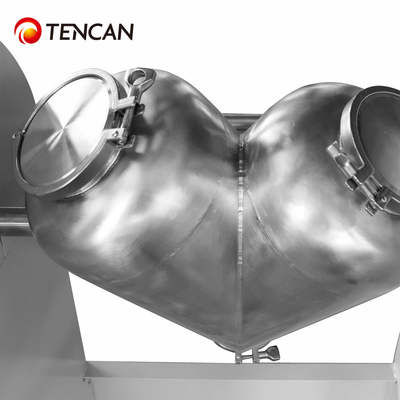

The mixer comprises two asymmetrically arranged cylinders joined in a V-configuration. During rotation, this unique geometry creates continuous division and recombination of material streams. Particles transition smoothly between chambers through a combination of sliding and stacking motions, while internal screw elements generate controlled turbulence for rapid homogenization. This advanced mixing principle makes the system particularly valuable for pharmaceutical, chemical, food production, and light industrial applications where precision blending is critical.
Features:
High-Efficiency Blending with Uniform Results
Our mixer is engineered to deliver optimal blending performance for materials with comparable particle size and density characteristics. Its advanced design guarantees exceptional mixing efficiency, ensuring complete homogenization through every batch.
Particle Integrity Preservation
The system's specialized configuration safeguards material properties by preventing particle fracture during operation. Your granules maintain their original structure and physical characteristics throughout the mixing cycle.
Material-Friendly Processing
Specially developed to minimize material degradation and wear, the equipment maintains the strength and durability of both fragile and robust substances. The polished interior and exterior surfaces eliminate contamination risks, while the seamless construction ensures zero dead zones for absolute material safety.
Customizable Configuration
Adapt to various processing needs with our selection of mixing chamber materials, including carbon steel, stainless steel, and nylon options. This flexibility enables tailored solutions for specific application requirements.

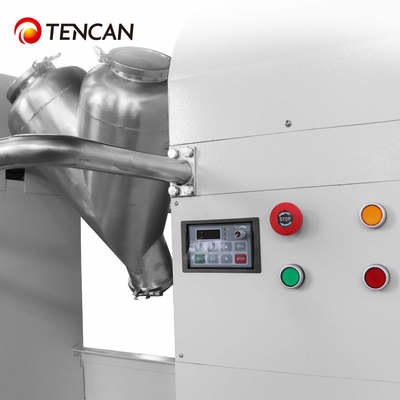

Automated Operation
Integrated timing controls allow precise setting of mixing duration with automatic cycle completion. This feature not only enhances operational efficiency but also guarantees consistent, repeatable blending results for every production run.
Technical Parameters:
| Product Name |
V-type Dry Powder Mixer |
| Key Word |
Powder Mixing Machine |
| Material |
Stainless Steel |
| Max Capacity |
2.5L |
| Rotation Speed |
10-50r/min |
| Mixing Time |
5-10min |
| Weight |
78kg |
| Power |
0.37KW |
| Voltage |
220V |
| Control System |
PLC |
| Powder Mixing Equipment |
V-type Dry Powder Mixer |
| Dry Powder Blender |
Powder Mixer Equipment |
| Product Name |
V-type Dry Powder Mixer |
| Key Word |
Powder Mixing Machine |
| Material |
Stainless Steel |
| Max Capacity |
2.5L |
| Rotation Speed |
10-50r/min |
| Mixing Time |
5-10min |
| Weight |
78kg |
| Power |
0.37KW |
| Voltage |
220V |
| Control System |
PLC |
Applications:
Welcome to TENCAN V-5 Powder Mixing Machine!
Are you tired of manually mixing powders for your experiments or production processes? Look no further, as TENCAN V-5 Powder Mixing Machine is here to help you achieve a perfect blend every time.
Application and Scenarios
Our Powder Mixing Machine is suitable for a wide range of industries such as pharmaceuticals, food, chemicals, and cosmetics. It is ideal for blending dry powders of different sizes and densities, ensuring a homogenous mix for various applications.
Whether you need to mix powdered medications, food ingredients, or chemical compounds, TENCAN V-5 can handle it all with ease. It is perfect for laboratory use, small-scale production, and even large-scale industrial processes.
Product Attributes
- Brand Name: TENCAN
- Model Number: V-5
- Place of Origin: Hunan, China
- Certification: ISO, CE
- Minimum Order Quantity: 1 set
- Price: Negotiable
- Packaging Details: Plywood case with foam
- Delivery Time: 10-20 days
- Payment Terms: T/T, Western Union
- Supply Ability: 100 Set/Sets per Month
- Model: V-5
- Mixing Time: 5-10 minutes
- Key Word: Powder Mixing Machine
- Rotation Speed: 10-50r/min
- Max Capacity: 2.5L
Product Features
TENCAN V-5 Powder Mixing Machine boasts the following features:
- Durable and high-quality construction for long-lasting use
- Easy to operate with user-friendly controls
- Efficient mixing with a rotation speed of 10-50r/min
- Large capacity of 2.5L for bulk mixing
- Short mixing time of 5-10 minutes for quick results
- Stable and reliable performance for consistent blends
- Low noise and low energy consumption
- Customizable options available to meet specific needs
Why Choose TENCAN V-5?
Choosing TENCAN V-5 Powder Mixing Machine means choosing a reliable and efficient blending solution for your business. Our machine is backed by ISO and CE certifications, ensuring top-notch quality and safety. With a large production capacity and customizable options, it can cater to all your mixing needs.
Additionally, our skilled engineers and technicians are always ready to provide technical support and after-sales service, making your experience with TENCAN a seamless one.
So why wait? Upgrade your powder mixing process with TENCAN V-5 today and see the difference in your production efficiency and product quality!
Packaging Specifications:
-
Unit shipped in industrial-grade wooden crate with protective cushioning
-
All components individually wrapped and secured within container
-
Exterior clearly marked with product identification and handling instructions
Shipping Options:
-
Multiple transport methods available (maritime/air/ground)
-
Freight costs calculated according to destination, weight and dimensions
-
Projected delivery schedule confirmed prior to dispatch
-
Professional handling throughout logistics chain to ensure perfect condition
Frequently Asked Questions
Q: What brand is this equipment?
A: TENCAN
Q: What is the specific model?
A: V-5
Q: Where is it produced?
A: Hunan, China
Q: Does it carry certifications?
A: ISO and CE certified
Q: What is the minimum order quantity?
A: 1 unit
Q: Are prices flexible?
A: Negotiable based on order volume
Q: How is it packaged?
A: Protected plywood case with custom foam inserts
Q: Typical delivery timeline?
A: 10-20 business days
Q: Accepted payment methods?
A: T/T and Western Union
Q: Production capacity?
A: 100 units monthly
